Banana PI BPI-M2 Berry 兼容性強大,可以跑android系統,Debian linux,Ubuntu linux, Raspberry Pi系統和全志TinaLinux系統.

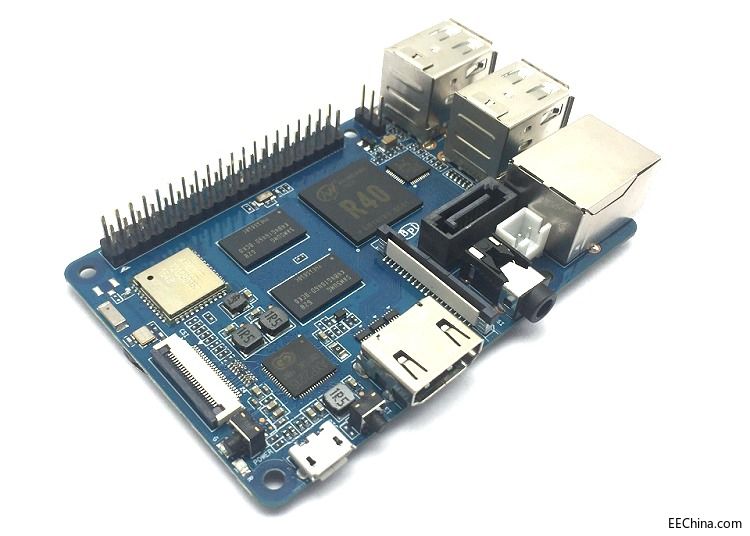

Banana PI BPI-M2 Berry硬件：全志R40/V40四核處理器，1GB LPDDR3內存，千兆以太網(wǎng)口，4 USB 接口 流暢運行Android5.1。Banana PI BPI-M2 Berry尺寸與樹(shù)莓派 3完全一樣，可以直接使用樹(shù)莓派3的外殼。GPIO兼容Raspberry Pi 3并能運行rasbian 系統。

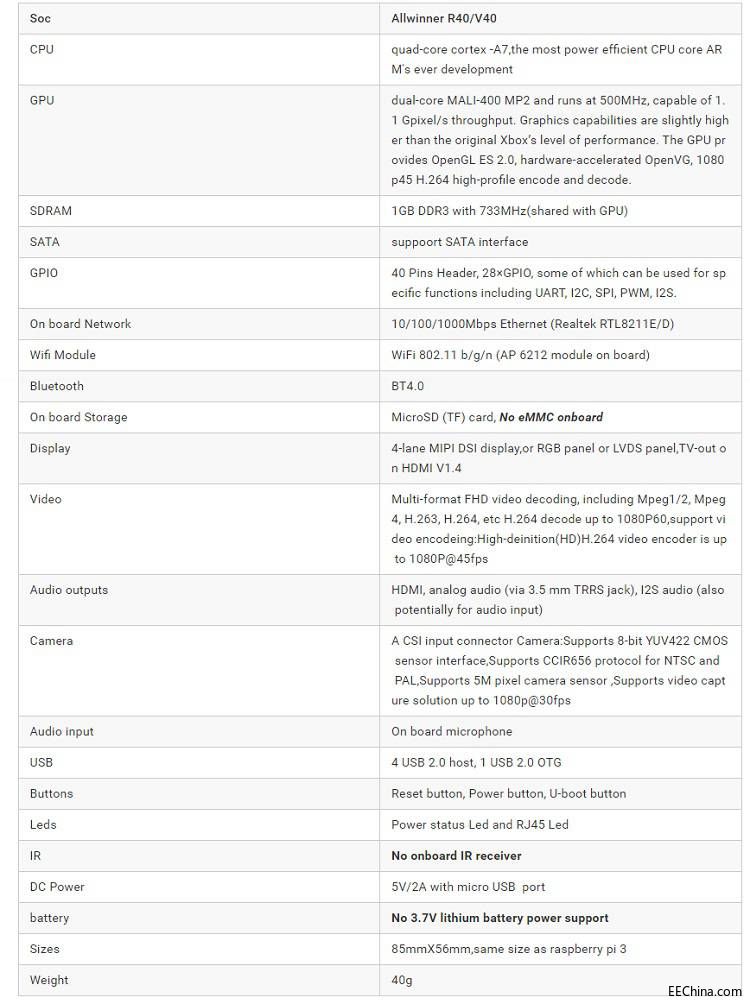

主要硬件功能：

1，Quad Core ARM Cortex A7 CPU

2，Dual core Mali 400 MP2 GPU

3，1G DDR3 SDRAM

4，support SATA interface

5，MicroSD slot supports up to 256GB expansion

6，Not 8G eMMC flash onboard

7，CSI camera intface and DSI display interface support

8，10/100/1000 Mb Ethernet port

9，(4) USB 2.0 hosts and (1) USB otg port

10，1080P high-definition video playback

11，HDMI port and multi-channel audio output

12，WIFI&Bluetooth 4.0 with 802.11BGN onboard

13，3.5mm Stereo Output mini-jack with microphone support

14，Not support Built-in 3.7V Lithium Battery Charging Circuit

15，Hardware security enables trustzone security system, Digital Rights Management (DRM), information encryption/decryption, secure boot, secure JTAG and secure efuse

硬件接口：
